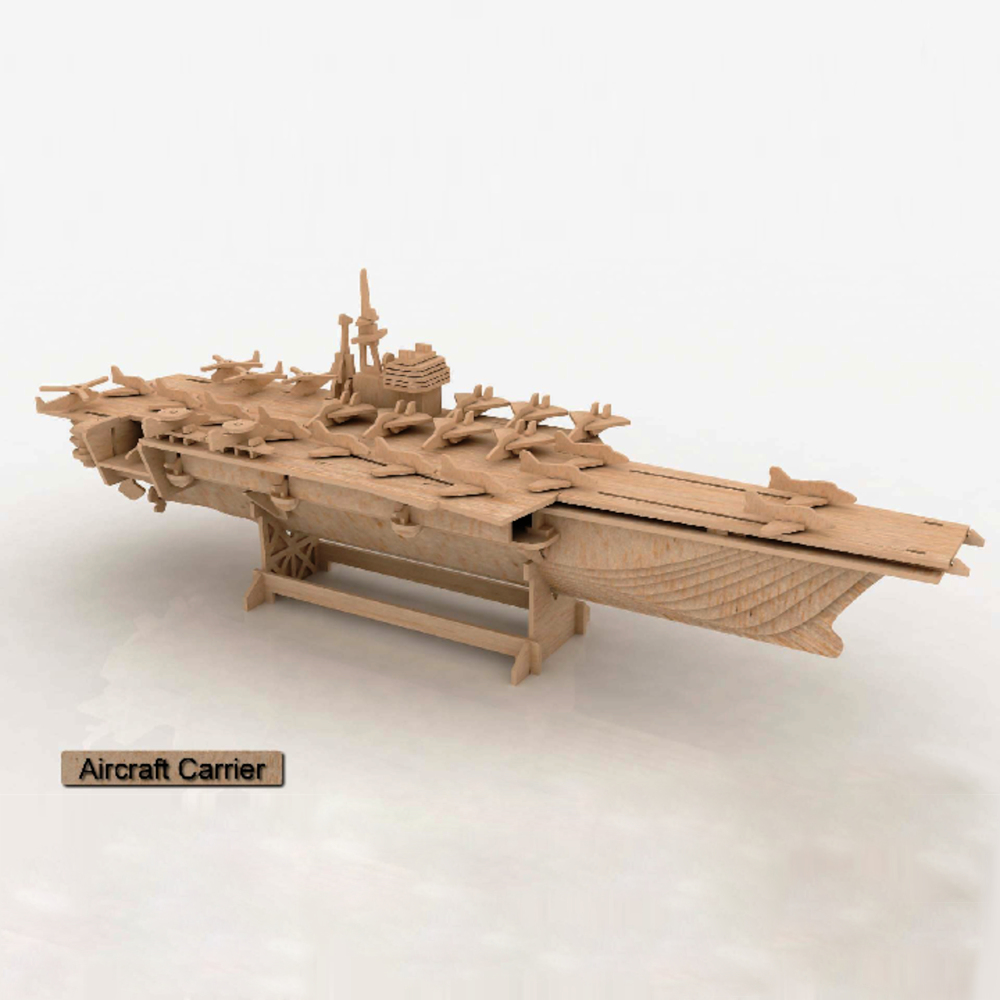

The supplied photograph shows a detailed aircraft carrier model with a long flight deck, small aircraft and a raised island structure. Supports hold the hull above the surface. The folder includes one CDR design file and an additional assembly-named PDF, giving this project a different structure from a simple boat silhouette.
This free library entry is identified as VAB-000196. Use the real project preview to choose the design, then inspect the source vectors before committing material. Preview colors, room mock-ups and photographed builds may differ from the lines and pieces in the cutting files.
What is in the project folder?
The extracted folder contains 1 design file: 1 CDR. It also includes 1 preview image. There is also 1 project-specific PDF file; inspect it to see whether it is a design sheet, reference or assembly guide. The universal library disclaimer, where present, is not a design or an assembly manual.
These are the formats actually present in this folder—not a promise that every format works in every laser or graphics program. Open a file in your own software and inspect its units, scale, layers and cut-versus-engrave paths before production.
Prepare this design carefully
Inspect the PDF and CDR together to distinguish hull parts, deck details and miniature aircraft. Small projections and closely spaced slots require a careful trial at the intended scale. Plan the order of fitting the island and deck before gluing; the photograph alone does not establish complete assembly instructions.
Make a small test with your own material and machine settings. The library has not independently verified thickness, kerf, strength, electrical performance, load capacity or machine compatibility for this project. If the design includes text, tiny bridges or interlocking parts, examine them at the final intended size.
Before final production, save an untouched source copy, inspect imported geometry for missing curves, and compare the first test piece with the supplied reference image.
Exact file inventory
3d_aircraft_carrier_s3_1__VAB-000196-A00001.jpg— 301267 bytesDISCLAIMER.pdf— 36161 bytesRukovodstvo_po_sborke_2__VAB-000196-A00002.pdf— 7539675 bytesvarco_flota__VAB-000196-A00003.cdr— 796423 bytes
Rights and credits
Keep original creator credits and watermarks. The site owner has attested permission to share these files and images; this is not a grant of public-domain status, digital resale rights or unrestricted downstream commercial use. Read the rights guidance and download guide. Questions: support@openlaserfiles.com.
Where to find the files
Open the shared PikPak library, enter the category folder, then search for the exact project folder below. This link opens the shared library, not a direct ZIP download; an account may be required. Browse more designs in the same category.
If PikPak attributes a paid upgrade to this referral link, the site may receive a commission. See the affiliate disclosure.
Project ID: VAB-000196
Exact folder path: 07_Vehicles_Aircraft_Boats_and_Machinery/VAB-000196_ships_ship_flys
