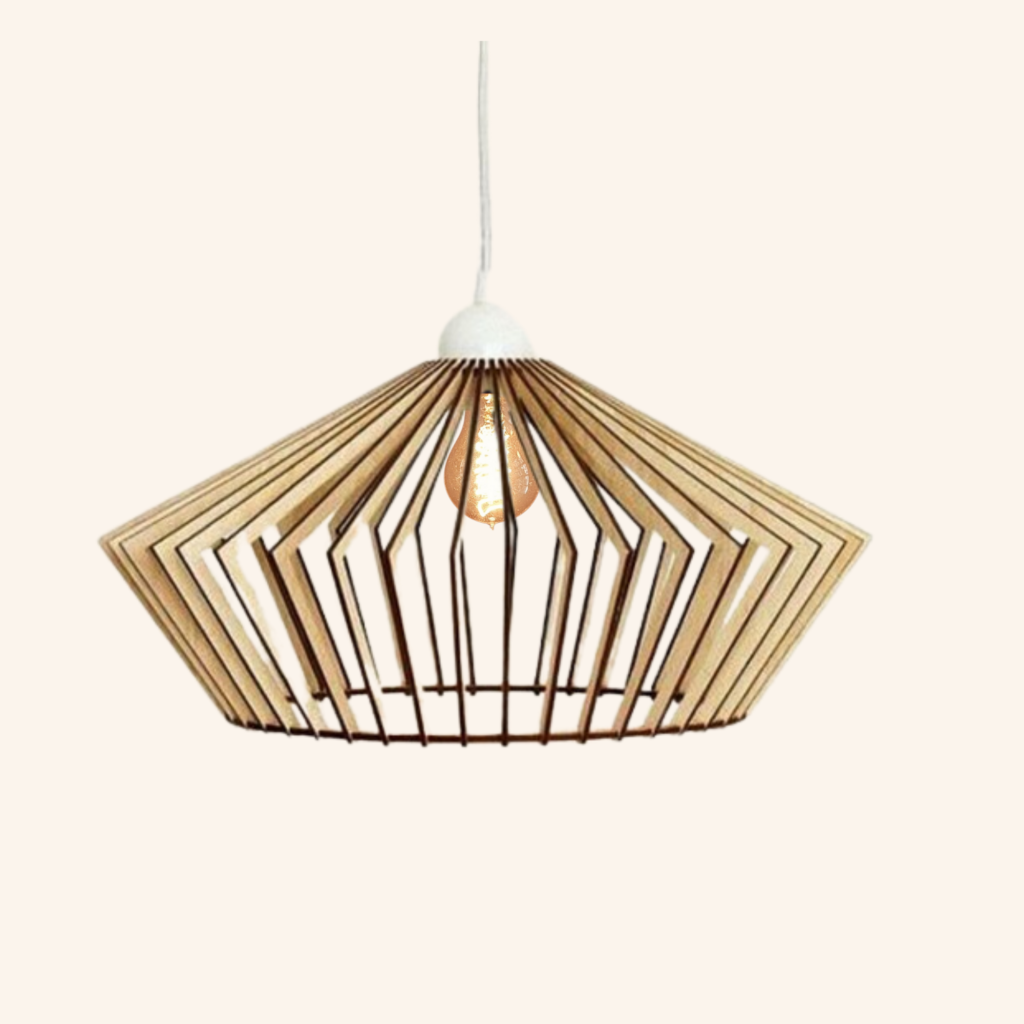

Angular ribs flare outward from the top and then converge toward a narrower lower opening in this pendant-shade preview. Their pointed profile gives the shade a diamond-like outline. Gaps between the ribs expose the central light and distinguish it from a solid diffuser.
This free library entry is identified as LLN-000063. Use the real project preview to choose the design, then inspect the source vectors before committing material. Preview colors, room mock-ups and photographed builds may differ from the lines and pieces in the cutting files.
What is in the project folder?
The extracted folder contains 4 design files: 1 AI, 1 CDR, 1 DXF, 1 SVG. It also includes 1 preview image. There is also 1 project-specific PDF file; inspect it to see whether it is a design sheet, reference or assembly guide. The universal library disclaimer, where present, is not a design or an assembly manual.
These are the formats actually present in this folder—not a promise that every format works in every laser or graphics program. Open a file in your own software and inspect its units, scale, layers and cut-versus-engrave paths before production.
Prepare this design carefully
Inspect the rib profiles and ring joints in the actual files. Make a small join test before preparing repeated ribs, and confirm that all copies retain the same orientation. The source picture does not establish a safe clearance between wood, a bulb and electrical fittings.
Make a small test with your own material and machine settings. The library has not independently verified thickness, kerf, strength, electrical performance, load capacity or machine compatibility for this project. If the design includes text, tiny bridges or interlocking parts, examine them at the final intended size.
Before final production, save an untouched source copy, inspect imported geometry for missing curves, and compare the first test piece with the supplied reference image.
Project-specific design notes
The folder includes AI, CDR, DXF, SVG and a project PDF. Numbers in filenames are not verified material guidance. Use the design only as a shade-pattern reference until you have chosen appropriate hardware and checked heat, suspension and electrical requirements independently; these are not supplied certifications.
Exact source file inventory
3_FILE_3_mm_31_AI__LLN-000063-A00002.ai— 3,136,564 bytes3_FILE_3_mm_31_CDR__LLN-000063-A00004.cdr— 95,384 bytes3_FILE_3_mm_31_DXF__LLN-000063-A00003.dxf— 588,879 bytes3_FILE_3_mm_31_PDF__LLN-000063-A00003.pdf— 29,700 bytes3_FILE_3_mm_31_SVG__LLN-000063-A00003.svg— 52,527 bytes3_FILE_3_mm_31__LLN-000063-A00001.png— 1,227,515 bytesDISCLAIMER.pdf— 36,161 bytes
Rights and credits
Keep original creator credits and watermarks. The site owner has attested permission to share these files and images; this is not a grant of public-domain status, digital resale rights or unrestricted downstream commercial use. Read the rights guidance and download guide. Questions: support@openlaserfiles.com.
Where to find the files
Open the shared PikPak library, enter the category folder, then search for the exact project folder below. This link opens the shared library, not a direct ZIP download; an account may be required. Browse more designs in the same category.
If PikPak attributes a paid upgrade to this referral link, the site may receive a commission. See the affiliate disclosure.
Project ID: LLN-000063
Exact folder path: 08_Lighting_Lightboxes_and_Night_Lights/LLN-000063_3_FILE_3_mm_31
