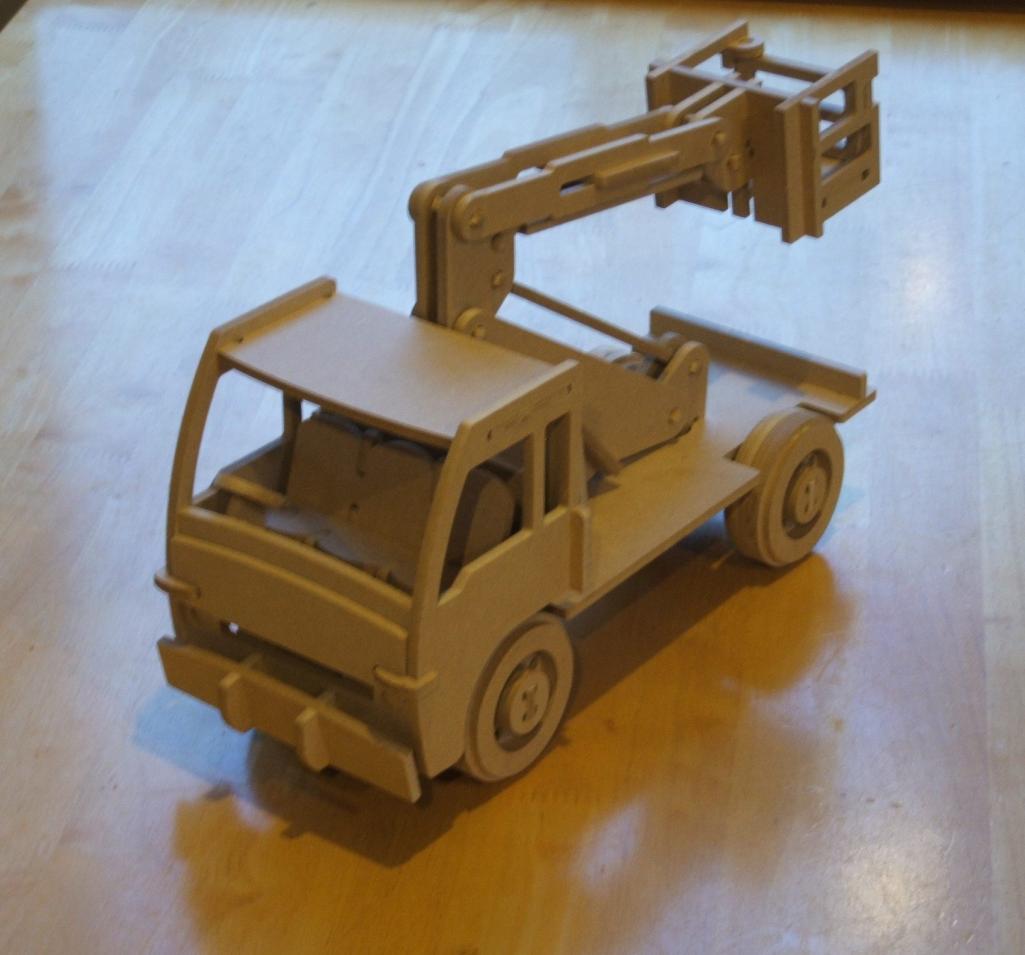

A wooden cherry picker truck carries a raised articulated boom and an open work basket. The supplied photograph shows a cab, layered wheels and a rear platform beneath the lifting arm.
Design and source notes
The package contains one DXF, two JPG photographs and two GIF references. A 4_75mm fragment appears in the DXF filename; it is not a verified thickness recommendation. The picture suggests pivoting connections, but movement range and load capacity have not been tested here.
Included files
Project VAB-000019 contains 2 JPG files, 1 DXF file, 2 GIF files. These are the files found in this project package, not a count of independent designs. The general library disclaimer is separate from the inventory.
Camion_1__VAB-000019-A00001.jpgCamion_2__VAB-000019-A00002.jpgCherry_picker_4_75mm__VAB-000019-A00003.dxfPodemnik1_1__VAB-000019-A00004.gifPodemnik1_2__VAB-000019-A00005.gif
Before preparing this project
- Map boom pivots and basket joints before assembly.
- Check wheel and axle geometry separately from body slots.
- Treat the basket as a model detail, not a load-bearing device.
The local file inventory, file signatures and selected source reference were reviewed on 7 September 2026. This is not a machine test or a guarantee that every format imports identically. Check scale, units and contours in a working copy before producing a sample. Finished dimensions and material settings are not independently verified.
