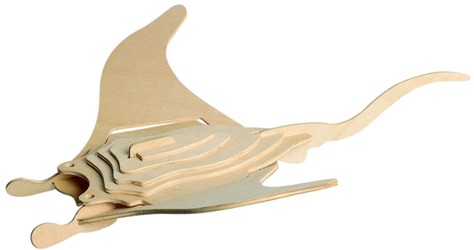

The manta ray reference shows broad swept fins, a long curved tail and a body formed from interlocking horizontal profiles. Small forward lobes distinguish the head from the wide fin span.
Design and source notes
DXF and EPS design files accompany JPG and GIF references, a PDF and an ART file. Keep these together while comparing the flat geometry with the assembled ray. The wide fins appear lightly supported in the image; this is a decorative model, not proof of a durable toy or a tested assembly.
Included files
Project APP-000023 contains 1 ART file, 1 GIF file, 3 JPG files, 1 DXF file, 1 EPS file, 1 PDF file. These are the files found in this project package, not a count of independent designs. The general library disclaimer is separate from the inventory.
arraia2__APP-000023-A00004.artarraia2__APP-000023-A00004.gifarraia3__APP-000023-A00005.jpgarraia_MantaRay_Wooden_Toy__APP-000023-A00003.jpgarraia__APP-000023-A00001.dxfarraia__APP-000023-A00001.epsarraia__APP-000023-A00001.jpgarraia_mantaray_bcbones__APP-000023-A00002.pdf
Before preparing this project
- Identify the central body slots before attaching the fins.
- Check the tail’s narrow connection and direction.
- Use the PDF as a reference without treating its presence as a machine test.
The local file inventory, file signatures and selected source reference were reviewed on 7 September 2026. This is not a machine test or a guarantee that every format imports identically. Check scale, units and contours in a working copy before producing a sample. Finished dimensions and material settings are not independently verified.
Credits and related resources
Retain the original source files, credits and applicable license notices. Open Laser Files has permission to share this package and display its references; that is not an unrestricted downstream commercial-use license.
Browse Animals, Plants & People, read the download guide and rights guidance. For a package question, contact support@openlaserfiles.com and include APP-000023.
Find this project on PikPak
Open the shared library, enter 06_Animals_Plants_and_People and search for APP-000023. Match the exact ZIP name below, then extract it to view the files listed above.
Library folder:06_Animals_Plants_and_People/APP-000023_Mantarraya
ZIP filename:APP-000023_Mantarraya.zip
