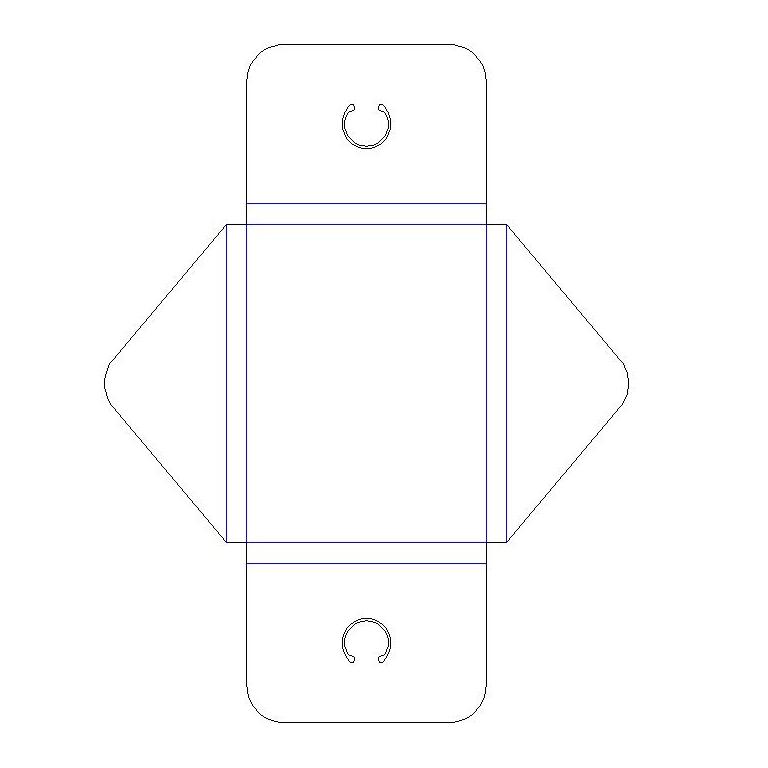

The flat net for this folding box has rounded end flaps, a central body and tapered side wings. Small circular or crescent-shaped openings appear near the ends where the string closure is illustrated in the source. A second photograph shows a folded example. The geometry suggests a tied package, not the tab-and-slot wooden construction used by many other box projects.
What is in the project folder?
The extracted folder contains 5 design files: 1 AI, 1 CDR, 1 DWG, 1 DXF, 1 SVG. It also includes 2 preview images. The universal library disclaimer, where present, is not a design or an assembly manual.
Prepare this design carefully
Locate the fold guides and keep them distinct from cutting contours. Fold a paper sample to see how the side wings sit beneath the ends, then check the closure-hole alignment. Select cord or other closure materials separately; the files do not provide tested hardware specifications.
Project-specific notes
Evaluate the tied closure before printing or engraving a label onto the body. A heavy decoration on one flap could change how it lies against the package. This source offers five core formats and an additional application file, all for the same box; do not combine differently imported scales without checking their bounding sizes.
Units, material thickness and machine compatibility have not been independently verified for BSF-000152. Keep the original files and make a small test before production.
Exact file inventory
Box_StringTieBox2__BSF-000152-A00001.ai— 3081636 bytesBox_StringTieBox2__BSF-000152-A00001.cdr— 18863 bytesBox_StringTieBox2__BSF-000152-A00001.dwg— 51014 bytesBox_StringTieBox2__BSF-000152-A00001.dxf— 49847 bytesBox_StringTieBox2__BSF-000152-A00001.jpg— 24497 bytesBox_StringTieBox2__BSF-000152-A00001.studio3— 62007 bytesBox_StringTieBox2__BSF-000152-A00001.svg— 5862 bytesBox_StringTieBox2_pic__BSF-000152-A00002.jpg— 212146 bytesDISCLAIMER.pdf— 36161 bytes
Rights and credits
Keep original creator credits and watermarks. The site owner has attested permission to share these files and images; this is not a grant of public-domain status, digital resale rights or unrestricted downstream commercial use. Read the rights guidance and download guide. Questions: support@openlaserfiles.com.
Where to find the files
Open the shared PikPak library, enter the category folder, then search for the exact project folder below. This link opens the shared library, not a direct ZIP download; an account may be required. Browse more designs in the same category.
If PikPak attributes a paid upgrade to this referral link, the site may receive a commission. See the affiliate disclosure.
Project ID: BSF-000152
Exact folder path: 05_Boxes_Storage_and_Furniture/BSF-000152_Cardstock_Boxes_String_Tie_Box_2
