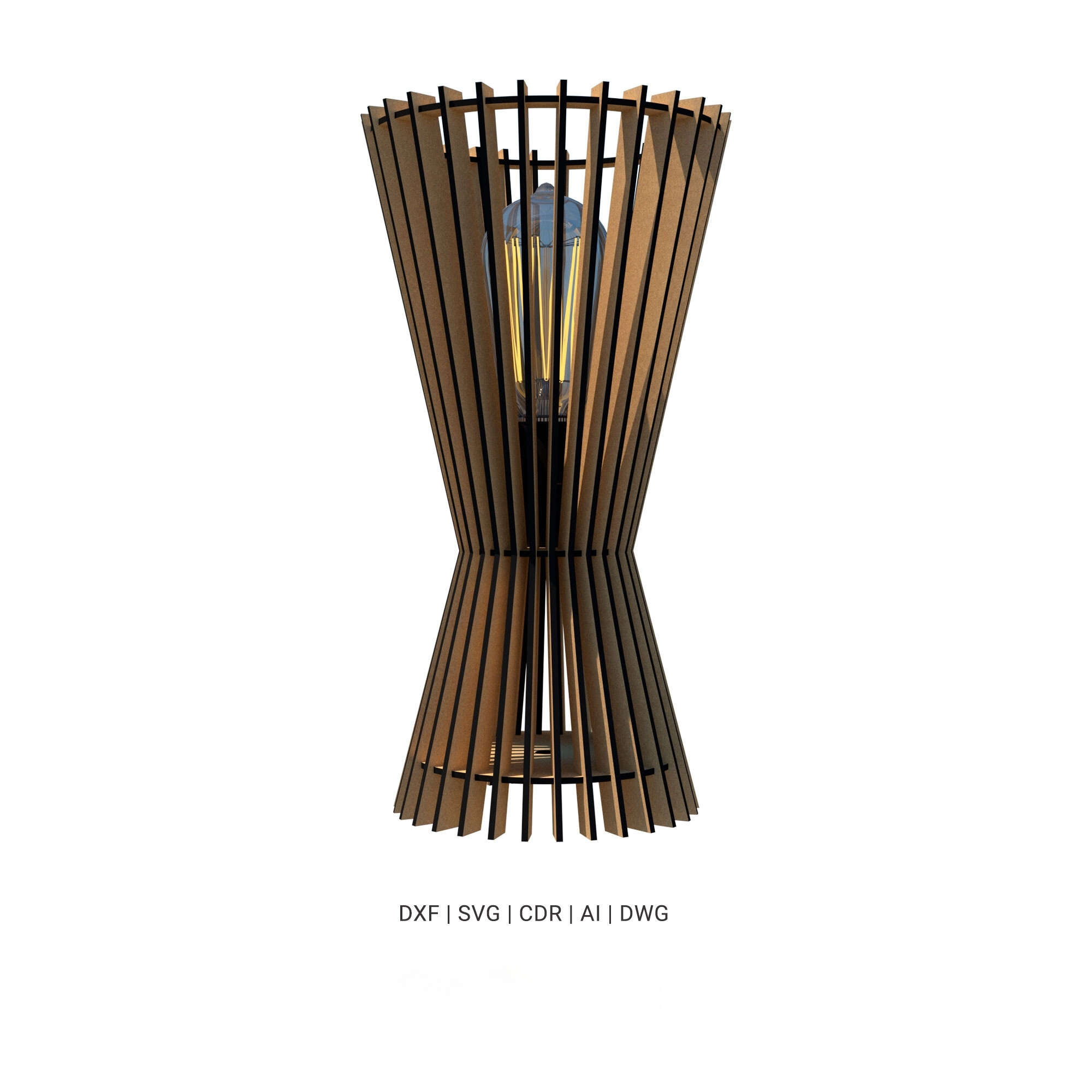

The preview presents a tall shade with vertical slats that flare at the top and bottom and pinch inward at the waist. Its open ribs reveal the interior. Five vector/CAD formats and a project PDF are present, with several reference images for comparing the assembled outline.
This free library entry is identified as LLN-000072. Use the real project preview to choose the design, then inspect the source vectors before committing material. Preview colors, room mock-ups and photographed builds may differ from the lines and pieces in the cutting files.
What is in the project folder?
The extracted folder contains 5 design files: 1 AI, 1 CDR, 1 DWG, 1 DXF, 1 SVG. It also includes 4 preview images. There is also 1 project-specific PDF file; inspect it to see whether it is a design sheet, reference or assembly guide. The universal library disclaimer, where present, is not a design or an assembly manual.
These are the formats actually present in this folder—not a promise that every format works in every laser or graphics program. Open a file in your own software and inspect its units, scale, layers and cut-versus-engrave paths before production.
Prepare this design carefully
Identify the rib shapes and supporting rings in the imported file before cutting. Test their slot fit and check that the waist stays aligned during assembly. Treat the shade as an untested enclosure component: choose an appropriate light source and assess heat, clearances and electrical installation independently.
Make a small test with your own material and machine settings. The library has not independently verified thickness, kerf, strength, electrical performance, load capacity or machine compatibility for this project. If the design includes text, tiny bridges or interlocking parts, examine them at the final intended size.
Before final production, save an untouched source copy, inspect imported geometry for missing curves, and compare the first test piece with the supplied reference image.
