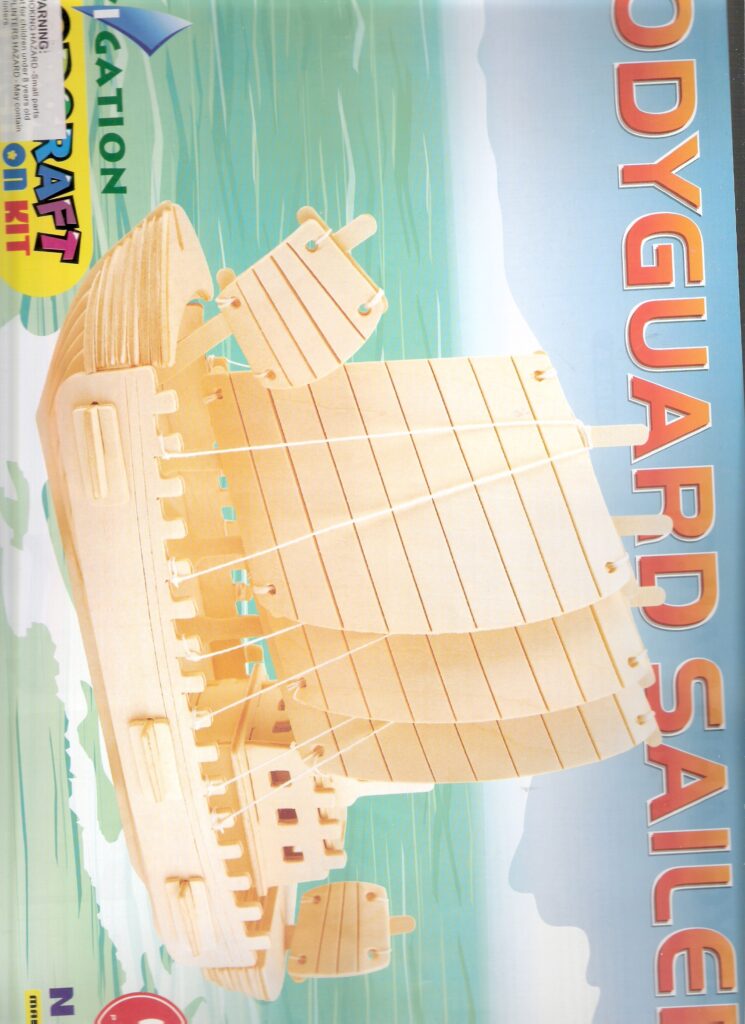

The package reference shows a wooden sailing ship with broad slatted sails, several masts and a raised rear cabin. The image is a sideways photograph of packaging, retained in its original orientation.
Design and source notes
One EPS accompanies five JPG references. The source filename contains Scan_3mm; neither that label nor the packaging establishes actual slot fit or material thickness. Inspect the EPS to distinguish traced part outlines from any embedded scan before treating it as a cutting layout.
Included files
Project VAB-000013 contains 5 JPG files, 1 EPS file. These are the files found in this project package, not a count of independent designs. The general library disclaimer is separate from the inventory.
Barco_2_1__VAB-000013-A00001.jpgBarco_2_3__VAB-000013-A00002.jpgBarco_2_4__VAB-000013-A00003.jpgBarco_2_5__VAB-000013-A00004.jpgBarco_2_6__VAB-000013-A00005.jpgBarco_Boyguard_Scan_3mm__VAB-000013-A00006.eps
Before preparing this project
- Identify the hull supports and matching mast slots.
- Compare the broad sail panels against the numbered reference sheets.
- Do not assume rigging thread or other physical accessories are included.
The local file inventory, file signatures and selected source reference were reviewed on 7 September 2026. This is not a machine test or a guarantee that every format imports identically. Check scale, units and contours in a working copy before producing a sample. Finished dimensions and material settings are not independently verified.
