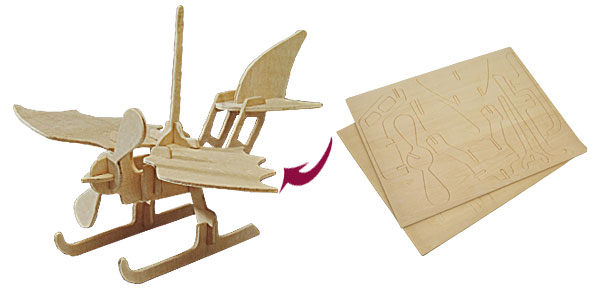

The reference image for this wooden aircraft project shows a small propeller model with wings, a tail and twin float-like supports. A second view within the same JPG shows the shapes arranged on a sheet. The folder contains a single DXF design file named Plane_2.
Design and reference notes
The assembled reference suggests a slot-together model with flat interlocking components. The twin supports distinguish its appearance from a wheeled aircraft model. This page uses seaplane-style as a visual description; it does not identify a real aircraft make, a scale ratio or a working flying model.
Treat this as a decorative model-pattern reference, not as an airworthy design or a certified children’s toy. The preview can help orient the parts, but it does not replace an assembly guide or a practical fit check.
What is included
| Project ID | VAB-000002 |
|---|---|
| Design files present | DXF (1) |
| Image references | 1 file; supplied with the project |
| Inspection | 4 September 2026: local inventory, file headers and selected reference images; not machine-tested |
| Dimensions and material | Not independently verified |
The source folder is named Avion_2, while the image uses Aviao and the design file uses Plane_2. Keeping those original names in the file-location record avoids confusion when the English article title differs from the archive. No separate written assembly instructions were found in the inspected folder.
Plane_2__VAB-000002-A00002.dxf
Before preparing this project
- Identify the fuselage, wings, tail, propeller and supports in the DXF by comparing them with the JPG. Confirm that every part required for the illustrated model is present.
- Check the slot widths and the imported overall scale before choosing sheet material. A DXF opening successfully does not prove that its units match your expected dimensions.
- Plan a small slot-fit test and inspect the thinner support pieces. This review has not established material thickness, assembly order or the durability of a finished model.
Rights and permitted use
Open Laser Files has permission to share this project package and display its reference images. This does not place the design in the public domain or grant unrestricted commercial use or further redistribution. Retain source credits and follow the applicable license terms; contact support@openlaserfiles.com if you need clarification.
